IC Engine Group Experimental Facilities
-
1 permanent chassis dynamometer for vehicle testing
-
8 engine test benches
-
2 pressurized chambers with optical access for fuel spray studies
-
1 combustion bomb
-
Equipment for heat-release analysis, based on in-cylinder pressure signals
-
2 full flow dilution tunnels for collecting particulate matter from exhaust
-
1 mini dilution tunnel for collecting particulate matter from exhaust
-
2 sets of gas analyzers for measurem. of CO (NDIR), CO2 (NDIR), NOx (chemiluminesc.), UHC (FID) and O2 (ZiO).
-
1 fluorescence SO2 analyzer
-
1 Bosch Smoke Meter
-
A chemical lab. for analysis of particulate emissions and fuel and lubricant composition
-
Pressurized lubricity tester
-
Pressurized visco-meter
-
Pressurized tribo-tester.
-

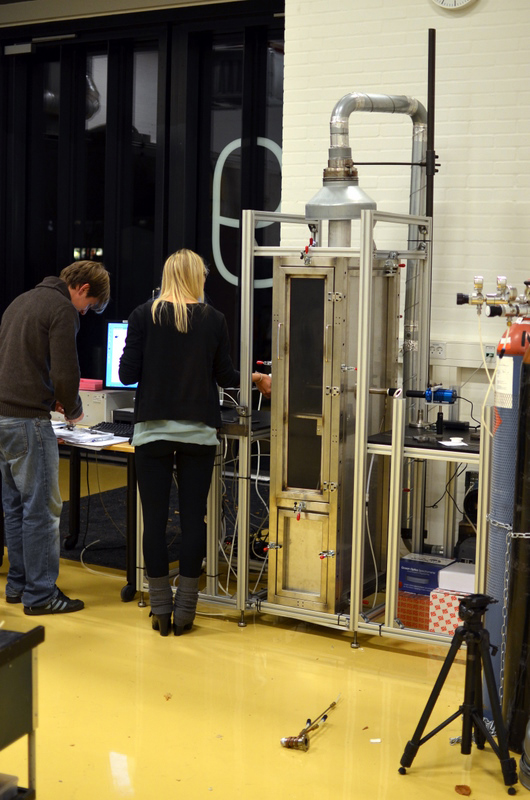

Transparent cylinder for the study of swirl flow in large engines.
A small gallery of the equipment used by the ICEG group
 |
|
View of laboratory building from parking lot accessible from Energivej towards the DTU Power Plant
|
 |
|

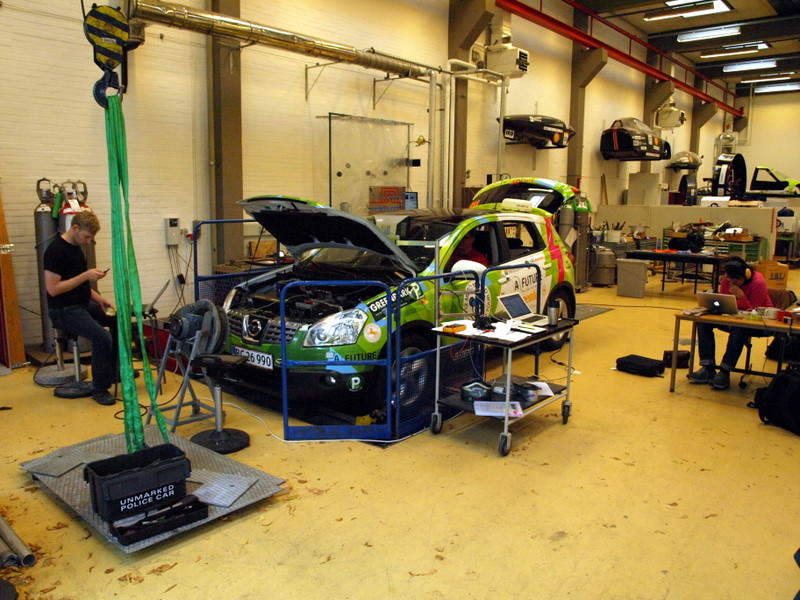

The chassis dynomometer here testing a battery electric vehicle according to the New European Driving Cycle
|
  |
|
Charging before running the tests
|
|
|
|

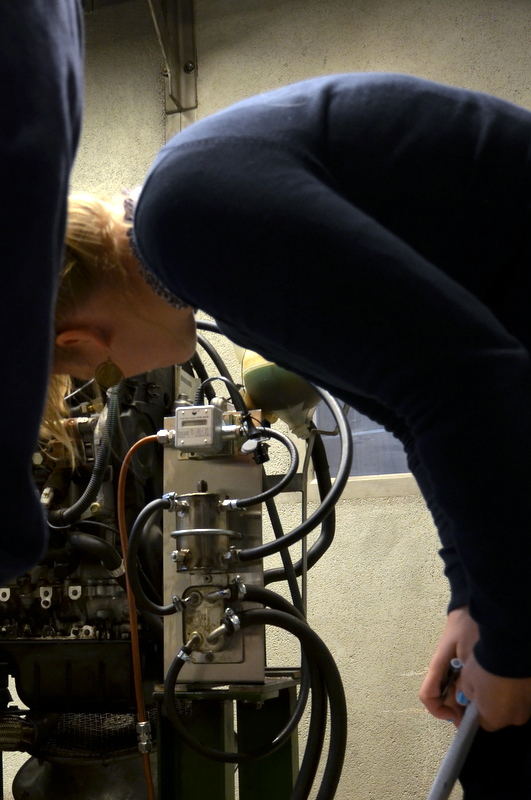

50cc DME (Dimethyl Ether) two-stroke test engine
|
|
|
|
|
The exchangable catalytic converter
|

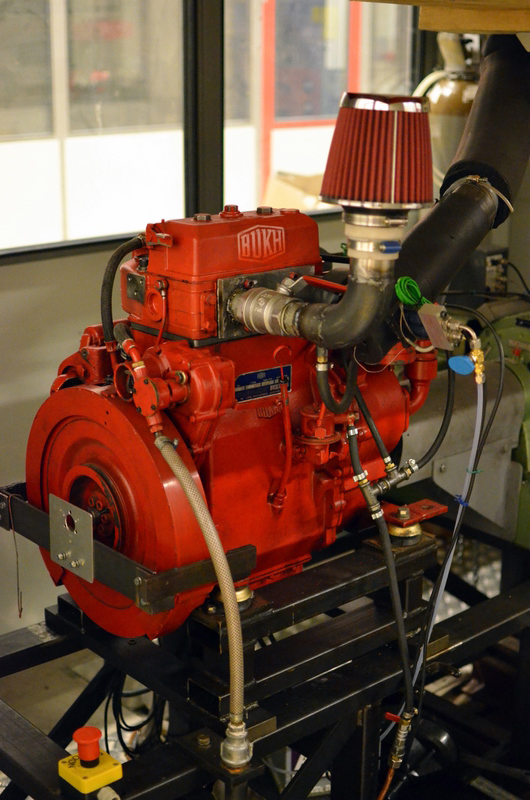

A BUKH engine modified for DME HCCI combustion
|
 |
 |
|
Pre-mixed flat flame test setup for the RadiaDE project
|
Pre-mixed flat flame in action, burning ethene+air
|
 |
 |
|
Ethene for the pre-mixed flat flame test bench
|
Black-body radiator for calibration of optics
|
 |
 |
|
Ecocar "Gallery" of previous Ecocars
|
Carbon monocoque mold for the 2012 Ecocar
|
 |
 |
|

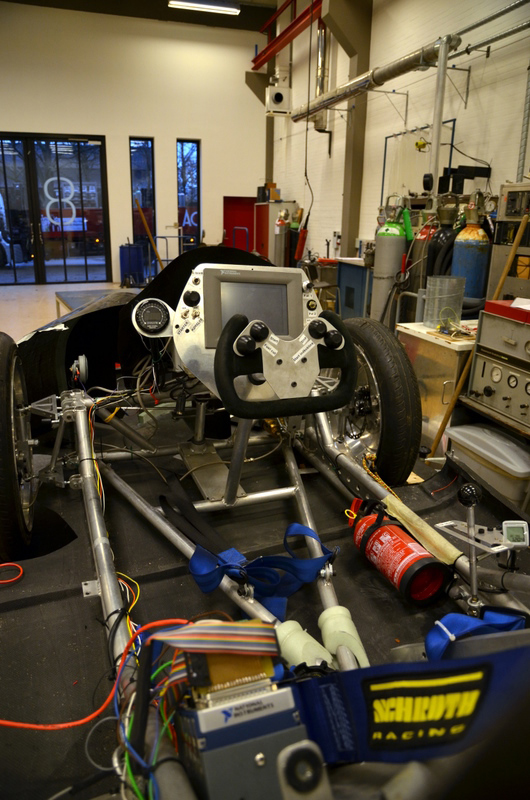

Cockpit of the 2011 Ecocar
|
Some of the emission testing equipment
|
 |
|
Bench testing of diesel particulate filters (DPF) using a PSA 1,4 HDi engine
|
 |
|
Students testing the engine's energy flows and efficiency
|
  |
|
Eddy current brake with load-cell to measure torque, manual reading of fuel flow
|
 |
|
450kW MAN B&W medium speed diesel generator set
|
  |
|

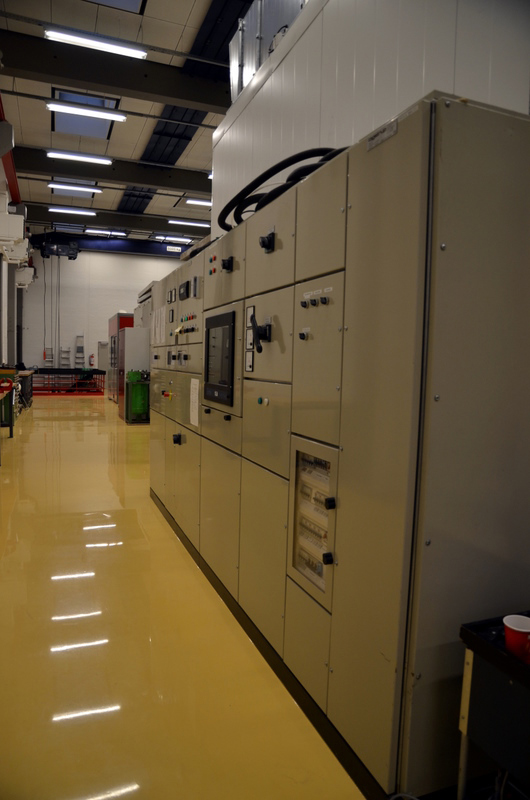

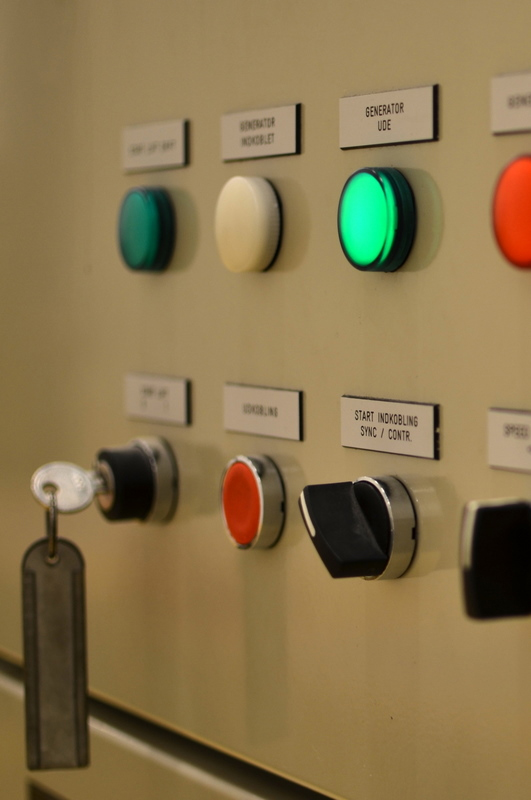

Genset controls, the diesel generator is able to feed power into the electrical grid while testing
|
 |
|

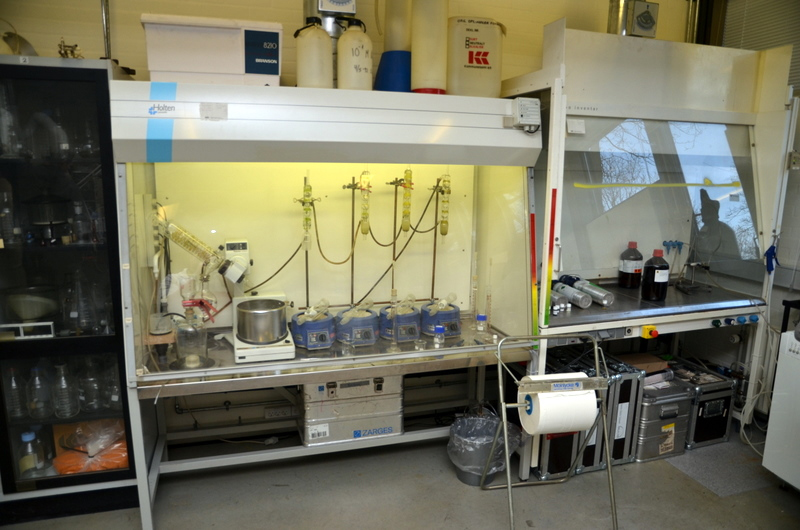

Equipment for extracting the Soluble Organic Fraction (SOF) of soot samples collected on filters
|
 |
|
GC (Gas Chromatograph) equipped with a capillary column running a temperature program (55-350°C)
|
 |
|
Concentration of soluble organic fraction for GC-analysis
|
 |
 |
|
Sample injection into GC column
|
Discussion of results
|
 |
|
The HPLC (high-performance liquid chromatograph) for measuring PAHs (Polycyclic aromatic hydrocarbons)
|
